2014 Radio Checkup Clinic
The NSARC meeting held on January 2, 2014 provided the opportunity to do
basic testing of members’ radios using a HP8921A Communications Service Monitor.
There was an enthusiastic response from the members in bringing in equipment for
test. Our members Alex VE7DXW and Adam VA7OJ ran the radio testing session.

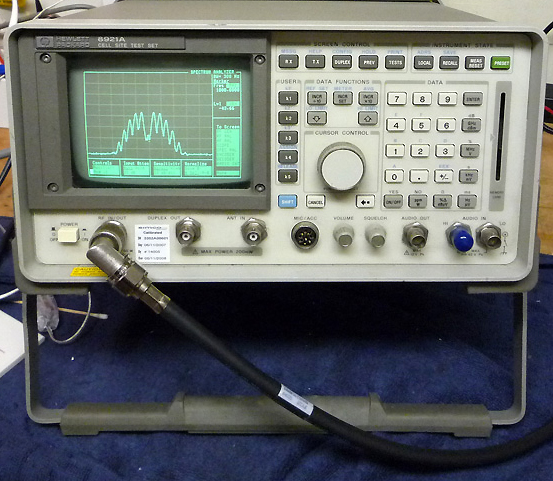

HP 8921A Communications Service Monitor
 |
The summary test results are given in Tables 1 and 2 below for those who missed the meeting. These
should not be regarded as definitive due to the informal nature of the tests.
Table 1: VHF/UHF Radios
| Radio |
Frequency |
Carrier Freq. Error |
Po (Nominal) |
Deviation |
Sensitivity1 |
| MHz |
Hz |
W |
kHz |
μV |
| Wouxun UX3R |
144 |
-131 |
1.63 (2) |
2.1 |
0.28 |
| 440 |
-400 |
1.4 (2) |
2.2 |
0.22 |
| Alinco DJ196 |
440 |
-440 |
0.8 (LOW) |
4.5 |
0.16 |
| Wouxun KG-669 |
146 |
-122 |
4.6 (5) |
3.5 |
0.11 |
| Kenwood TH-G71 |
146 |
-760 |
4 (5) |
3.5 |
0.16 |
| Icom F3021T2 |
146 |
+200 |
|
4.5 |
|
| Wouxun KG-UV1D |
146 |
-30 |
4 |
4.1 |
1.63 |
| Baofeng UV-5R |
146 |
-77 |
4.8 (4) |
3.2 |
0.14 |
| Icom IC-P7A |
146 |
-260 |
1.3 |
3.8 |
0.15 |
| Icom IC-208H |
146 |
-750 |
52 (50) |
4.2 |
0.14 |
| 440 |
-1.8k3 |
35 (35) |
4.2 |
0.14 |
| Icom IC-7000 |
146 |
+100 |
42 (50) |
4.21 |
0.5/0.224 |
| 440 |
400 |
30 (35) |
4.3 |
0.73/0.34 |
Notes:
- 12 dB SINAD or 20 dB quieting.
- It was not possible to connect to the test set (proprietary
antenna connector.)
- Out of spec.
- Preamp on.
Table 2: HF Radios
| Radio |
Frequency |
Carrier
Freq. Error |
Po
(Nominal) |
Sensitivity1 |
| MHz |
Hz |
W |
μV |
| Kenwood TS-530 |
14.1 |
-110 |
94 (100) |
0.35 |
| Icom IC-745 |
14.1 |
-6 |
75 (100) |
0.89/0.352 |
| Heathkit SB-101 |
14.1 |
+1.5k |
110 (100) |
0.25 |
| Icom
IC-7000 |
14.1 |
+12 |
102
(100) |
0.5/0.142 |
Notes:
- 12 dB SINAD.
- Preamp on.
Link:
View a slide show of the Clinic.
|
|
|
|
|
